2SK type two-stage water ring vacuum pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram

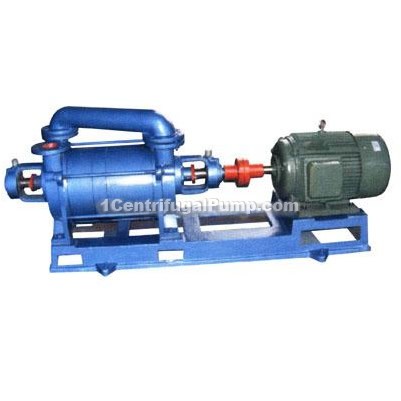

2SK type two-stage water ring vacuum pumps
introductions
2SK series water ring vacuum pumps are used to pump or compressed air and other non corrosive, insoluble in water, not contain solids, gases, so as to form vacuum and pressure in the closed container, suction air is allowed to mix with a little liquid.
type meaning

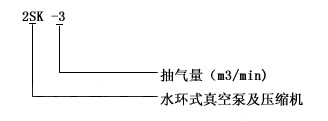

2SK type two-stage water ring vacuum pump type meaning
applicable scope
2SK water ring vacuum pump is widely used in machinery, petroleum chemical industry, pharmaceutical, food, sugar industry and electronic field. As in the process of operation, gas compression process is isothermal, so in the compression and suction explosive gas, it is not dangerous, so its appplication is more widely
performance parameters
| type | pumping volume（m3/min） | extreme pressure | power (kw) | rotate speed (r.p.m) | water supply output (L/min) | diameter | ||
| maximum | When suction pressure is -0.093Mpa, not less than | mmHg | MPa | |||||
| 2SK-1.5 | 1.5 | 0.9 | -730 | -0.097 | 4 | 1440 | 10～15 | φ40 |
| 2SK-3 | 3 | 2 | -735 | -0.098 | 7.5 | 1440 | 15～20 | φ40 |
| 2SK-6 | 6 | 4 | -735 | -0.098 | 15 | 1460 | 25～35 | φ70 |
| 2SK-12 | 12 | 8 | -735 | -0.098 | 22 | 970 | 40～50 | φ100 |
| 2SK-30 | 20 | 14 | -735 | -0.098 | 45 | 740 | 60～80 | φ125 |
| 2SK-30 | 30 | 20 | -735 | -0.098 | 55 | 740 | 70～90 | φ125 |
