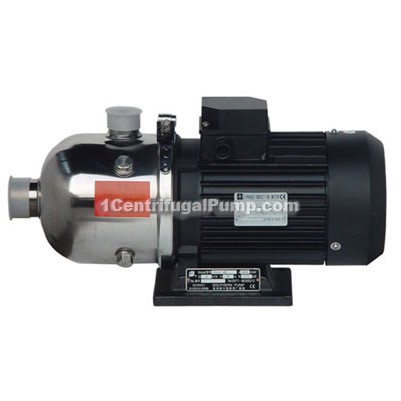

CHL light horizontal multi-stage centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram
CHL light horizontal multi-stage centrifugal pumps
applicable scope
CHL and CHLK, CHLF (T) type pump is mainly used for family central air-conditioning circulation and industrial liquid transmission. Such as take off mineral water, soft water, purification system, light oil and other circulation and pressurization.
•light central air-conditioning circulation
•cooling system
•industrial cleaning
•water treatment (water purification)
•aquaculture
•fertilize/metering system
•environmental application
working conditions
Thin, clean, non-solidification, not explode, not containing solid particles or fiber liquid
liquid temperature： normal temperature －15℃ to +70℃
hot water type: +70℃ to +110℃
maximum environmental temperature：+40℃
maximum operating pressure：10 bar
maximum inlet pressure is limited by maximum operating pressure
medium alkalinity and acidity：PH4~9
motor
motor is fully closed, air cooling dipolar motor
protection class：IP55
insulation class：F
standard voltage，
50Hz：
1×220-240V
3×220-240V
380-415V
60Hz：
1×220-240V
3×220-240V
380-415V
performance parameters
| type | head (m) | flow (m3/h) | motor power (KW) | rotate speed (r/min) |
| CHL2-20 | 14 | 2 | 0.37 | 2900 |
| CHL2-30 | 21 | 2 | 0.55 | 2900 |
| CHL2-40 | 28 | 2 | 0.55 | 2900 |
| CHL2-50 | 35 | 2 | 0.55 | 2900 |
| CHL2-60 | 42 | 2 | 0.75 | 2900 |
| CHL4-20 | 15 | 4 | 0.55 | 2900 |
| CHL4-30 | 22 | 4 | 0.75 | 2900 |
| CHL4-40 | 30 | 4 | 0.75 | 2900 |
| CHL8-10 | 8.5 | 8 | 0.75 | 2900 |
| CHL8-20 | 17 | 8 | 0.75 | 2900 |
| CHL8-30 | 25.5 | 8 | 1.1 | 2900 |
| CHL8-40 | 34 | 8 | 1.5 | 2900 |
| CHL8-50 | 42.5 | 8 | 2.2 | 2900 |
| CHL12-10 | 9.5 | 12 | 0.75 | 2900 |
| CHL12-20 | 19.5 | 12 | 1.2 | 2900 |
| CHL12-30 | 29.5 | 12 | 1.8 | 2900 |
| CHL12-40 | 39.5 | 12 | 2.4 | 2900 |
| CHL12-50 | 50 | 12 | 3 | 2900 |
| CHL16-10 | 10 | 16 | 1.1 | 2900 |
| CHL16-20 | 21 | 16 | 2.2 | 2900 |
| CHL16-30 | 32 | 16 | 3 | 2900 |
| CHL20-10 | 9.5 | 20 | 1.1 | 2900 |
| CHL20-20 | 21 | 20 | 2.2 | 2900 |
| CHL20-30 | 33 | 20 | 4 | 2900 |
| CHLF(T)2-20 | 14 | 2 | 0.37 | 2900 |
| CHLF(T)2-30 | 21 | 2 | 0.55 | 2900 |
| CHLF(T)2-40 | 28 | 2 | 0.55 | 2900 |
| CHLF(T)2-50 | 35 | 2 | 0.55 | 2900 |
| CHLF(T)2-60 | 42 | 2 | 0.75 | 2900 |
| CHLF(T)4-20 | 15 | 4 | 0.55 | 2900 |
| CHLF(T)4-30 | 22 | 4 | 0.55 | 2900 |
| CHLF(T)4-40 | 30 | 4 | 0.75 | 2900 |
| CHLF(T)4-50 | 38 | 4 | 1.1 | 2900 |
| CHLF(T)4-60 | 45 | 4 | 1.1 | 2900 |
| CHLF(T)8-10 | 8.5 | 8 | 0.75 | 2900 |
| CHLF(T)8-20 | 17 | 8 | 0.75 | 2900 |
| CHLF(T)8-30 | 25.5 | 8 | 1.1 | 2900 |
| CHLF(T)8-40 | 34 | 8 | 1.5 | 2900 |
| CHLF(T)8-50 | 42.5 | 8 | 2.2 | 2900 |
| CHLF(T)12-10 | 9.5 | 12 | 0.75 | 2900 |
| CHLF(T)12-20 | 19.5 | 12 | 1.2 | 2900 |
| CHLF(T)12-30 | 29.5 | 12 | 1.8 | 2900 |
| CHLF(T)12-40 | 39.5 | 12 | 2.4 | 2900 |
| CHLF(T)12-50 | 50 | 12 | 3 | 2900 |
| CHLF(T)16-10 | 10 | 16 | 1.1 | 2900 |
| CHLF(T)16-20 | 21 | 16 | 2.2 | 2900 |
| CHLF(T)16-30 | 32 | 16 | 3 | 2900 |
| CHLF(T)16-40 | 43 | 16 | 4 | 2900 |
| CHLF(T)20-10 | 9.5 | 20 | 1.1 | 2900 |
| CHLF(T)20-20 | 21 | 20 | 2.2 | 2900 |
| CHLF(T)20-30 | 33 | 20 | 4 | 2900 |
| CHLF(T)20-40 | 44.5 | 20 | 4.4 | 2900 |
