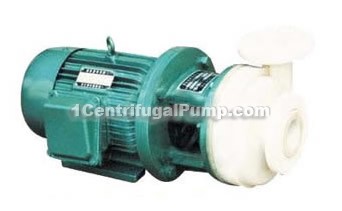

PF type strong anti-corrosion centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)
diagram

PF type strong anti-corrosion centrifugal pumps
introductions
PF(FS) Centrifugal Pump, the pump body, cover, impeller and conveying medium connecting parts all adopt PVDF or FRPP process or injecting plastic process. PVDF has high mechanical strength and good corrosion resistance performance, is one of the engineering plastics widely used in all over the world. PF (FS) Centrifugal Pump can satisfy the conveying of -50~80 degrees temperature various concentrations sulfuric acid, hydrochloric acid, nitric acid, acetic acid, phosphoric acid, chromic acid, oxalic acid and hydrofluoric acid, alkali, organic solvents, chemicals, pharmaceuticals, electroplating, environmental protection, and other industrial departments to transport excluding grain corrosive medium energy-saving pump.
performance parameters
PF type | inlet diameter mm | outlet diameter mm | rotate speed 2900r/min | rotate speed 1450r/min | suction up height | ||||||
flow m3/h | head m | efficiency % | Equipped motor KW | flow m3/h | head m | efficiency % | Equipped motor KW | ||||
25-20-120 | 25 | 20 | 2.5 | 15 | 40 | 1.1 | |||||
25-20-120 | 25 | 20 | 2 | 20 | 43 | 1.1 | |||||
32-25-125 | 32 | 25 | 6.5 | 20 | 51 | 1.5 | |||||
32-25-125 | 32 | 25 | 5 | 25 | 53 | 1.5 | |||||
40-32-125 | 40 | 32 | 10 | 15 | 50 | 2.2 | 5 | 3.75 | 39 | 1.1 | 3 |
40-32-125 | 40 | 32 | 7.5 | 20 | 55 | 2.2 | 3.75 | 5 | 40 | 1.1 | 3 |
50-40-145 | 50 | 40 | 16 | 28 | 58 | 3 | 8 | 7 | 50 | 1.5 | 5 |
50-40-145 | 50 | 40 | 20 | 26 | 61 | 3 | 10 | 6.5 | 54 | 1.5 | 5 |
50-40-145 | 50 | 40 | 25 | 24 | 63 | 3 | 12.5 | 6 | 55 | 1.5 | 5 |
65-50-160 | 65 | 50 | 15 | 34 | 44 | 5.5 | 7.5 | 8.5 | 50 | 2.2 | 5 |
65-50-160 | 65 | 50 | 25 | 36 | 57 | 5.5 | 12.5 | 8 | 60 | 2.2 | 5 |
65-50-160 | 65 | 50 | 30 | 30 | 59 | 5.5 | 15 | 7.5 | 60 | 2.2 | 5 |
80-65-160 | 80 | 65 | 30 | 36 | 50 | 7.5 | 15 | 9 | 55 | 3 | 5 |
80-65-160 | 80 | 65 | 50 | 32 | 67 | 7.5 | 25 | 8 | 68 | 3 | 5 |
80-65-160 | 80 | 65 | 60 | 28 | 65 | 7.5 | 30 | 7.2 | 68 | 3 | 5 |
100-80-160 | 100 | 80 | 60 | 36 | 70 | 11 | 30 | 9.2 | 67 | 4 | 5 |
100-80-160 | 100 | 80 | 100 | 32 | 78 | 11 | 50 | 8 | 75 | 4 | 5 |
100-80-160 | 100 | 80 | 120 | 28 | 75 | 11 | 60 | 6.5 | 71 | 4 | 5 |
