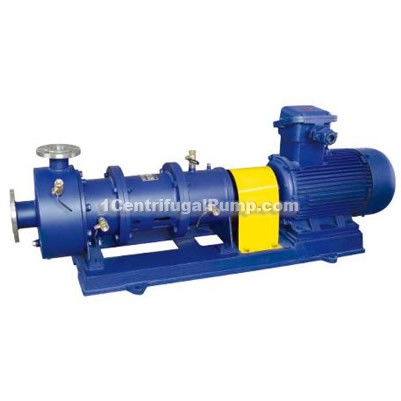

diagram
CQB-G high temperature heat insulation pumps
introductions
CQB-G type high temperature heat preservation pump (hereinafter referred to as high temperature pump) adopts multiple loop cooling structure, ensures motive power and magnetic transmission reliability and stability, also adopts pin shaft coupling to reduce the noise and vibration, easy disassembly type and pin shaft coupling meanwhile using, extending the pump structure, is more advantageous to the radiating. At the same time, it is also very convenient for maintenance or replacement parts, radiating fan blade is designed on the pump external rotor part, ensure the stability of the magnets. This series pumps are used in conveying high temperature medium, temperature ≤300℃.
performance parameters
| CQB-G high temperature magnetic driving pump | |||||||||
| type | flow Q (m3/h) | head (m) | rotate speed n (r/min) | eficiency η (%) | motor type | motor power (Kw) | |||
| CQB32-20-125G | 3.2 | 20 | 2900 | 35 | YB802-2 | 1.1 | |||
| CQB32-20-160G | 3.2 | 32 | 2900 | 35 | YB90S-2 | 1.5 | |||
| CQB40-25-105G | 6.3 | 12.5 | 2900 | 45 | YB802-2 | 1.1 | |||
| CQB40-25-125G | 6.3 | 20 | 2900 | 42 | YB90L-2 | 2.2 | |||
| CQB40-25-160G | 6.3 | 32 | 2900 | 35 | YB100L-2 | 3 | |||
| CQB40-25-200G | 6.3 | 50 | 2900 | 28 | YB132S1-2 | 5.5 | |||
| CQB50-40-85G | 12.5 | 8 | 2900 | 56 | YB802-2 | 1.1 | |||
| CQB50-32-105G | 12.5 | 12.5 | 2900 | 54 | YB90L-2 | 2.2 | |||
| CQB50-32-125G | 12.5 | 20 | 2900 | 50 | YB100L-2 | 3 | |||
| CQB50-32-160G | 12.5 | 32 | 2900 | 46 | YB112M-2 | 4 | |||
| CQB50-32-200G | 12.5 | 50 | 2900 | 39 | YB132S2-2 | 7.5 | |||
| CQB50-32-250G | 12.5 | 80 | 2900 | 30 | YB160L-2 | 18.5 | |||
| CQB65-50-125G | 25 | 20 | 2900 | 58 | YB132S1-2 | 5.5 | |||
| CQB65-50-160G | 25 | 32 | 2900 | 56 | YB132S2-2 | 7.5 | |||
| CQB65-40-200G | 25 | 50 | 2900 | 49 | YB160M-2 | 15 | |||
| CQB65-40-250G | 25 | 80 | 2900 | 46 | YB180M-2 | 22 | |||
| CQB80-65-125G | 50 | 20 | 2900 | 66 | YB132S2-2 | 7.5 | |||
| CQB80-65-160G | 50 | 32 | 2900 | 64 | YB160M-2 | 15 | |||
| CQB80-50-200G | 50 | 50 | 2900 | 60 | YB160L-2 | 18.5 | |||
| CQB80-50-250G | 50 | 80 | 2900 | 55 | YB200L1-2 | 30 | |||
| CQB100-80-125G | 100 | 20 | 2900 | 72 | YB160M-2 | 15 | |||
| CQB100-80-160G | 100 | 32 | 2900 | 70 | YB160M-2 | 22 | |||
| CQB100-65-200G | 100 | 501 | 2900 | 68 | YB200L1-2 | 30 | |||
| CQB100-65-250G | 100 | 80 | 2900 | 64 | YB225M-2 | 45 | |||
| Note: all aboved specifications can be equipped with explosion-proof motor | |||||||||
