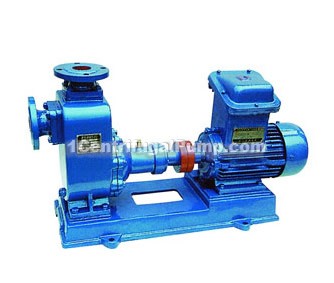

CYZ-A self-suction centrifugal oil pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram
CYZ-A self-suction centrifugal oil pumps
introductions
Our produced CYZ-A type self-priming centrifugal oil pump is according to the domestic and foreign relevant technical data via digestion and absorption, improved to develop the latest products, it is unique at domestic, suitable for petroleum industry, oil depot, oil tanker,, suitable for marine cargo pump, bilge pump, and fire pump, ballast pump and equipment cooling water circulation, respectively transport gasoline, kerosene, diesel oil, and other oil products and sea water, clean water, medium temperature is -20℃～140℃,if conveying chemical liquids can convert anti-corrosion mechanical seal.
This is self-priming centrifugal pump, it has simple structure, convenient operation, stable operation, easy maintenance, high efficiency, long service life, with strong self-priming capacity, etc. In the pipeline without foot valve, before working, only need to ensure pump body storaging certain leading oil. When used for oil tanker or water delivery ships, it can also be used as stripping pump, stripping effect is good.
This pump is refine manufactured by high quality materials, seal uses cemented alloy mechanical seal, durable, spit pipe doesn't need to install safety valve and suction pipe does not need to install foot valve, thus simplifying the piping system and improve the working conditions.
performance parameters
| (Type) | flow | head (m) | suction (m) | rotate speed (r/min) | motor power (Kw) | diameter (mm) | ||
| (m3/h) | (L/s) | inlet | outlet | |||||
| 25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.75 | 25 | 25 |
| 25CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.1 | 25 | 25 |
| 40CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.1 | 40 | 32 |
| 40CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 40 |
| 50CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.5 | 50 | 50 |
| 50CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 2.2 | 50 | 50 |
| 50CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-A-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 5.5 | 50 | 50 |
| 50CYZ-A-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 7.5 | 50 | 50 |
| 50CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 11 | 50 | 50 |
| 65CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 3 | 65 | 50 |
| 65CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 5.5 | 65 | 50 |
| 80CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3 | 80 | 65 |
| 80CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 4 | 80 | 65 |
| 80CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 5.5 | 80 | 65 |
| 80CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-A-32 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 18.5 | 80 | 80 |
| 80CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 22 | 80 | 80 |
| 100CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 11 | 100 | 80 |
| 100CYZ-A-40 | 100 | 27.8 | 40 | 6 | 2900 | 22 | 100 | 100 |
| 100CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 22 | 100 | 100 |
| 100CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 30 | 100 | 100 |
| 100CYZ-A-75 | 70 | 19.4 | 75 | 6 | 2900 | 30 | 100 | 100 |
| 150CYZ-A-45 | 170 | 47.2 | 45 | 5 | 2900 | 37 | 150 | 100 |
| 150CYZ-A-55 | 170 | 47.2 | 55 | 5 | 2900 | 45 | 150 | 100 |
| 150CYZ-A-65 | 170 | 47.2 | 65 | 5 | 2900 | 55 | 150 | 100 |
| 150CYZ-A-80 | 160 | 44.4 | 80 | 5 | 2900 | 55 | 150 | 100 |
| 200CYZ-A-63 | 280 | 77.8 | 63 | 5 | 1450 | 90 | 200 | 150 |
| 250CYZ-A-50 | 400 | 111.1 | 50 | 5 | 1450 | 90 | 250 | 200 |
| 300CYZ-A-50 | 500 | 138.9 | 50 | 5 | 1450 | 110 | 300 | 250 |
