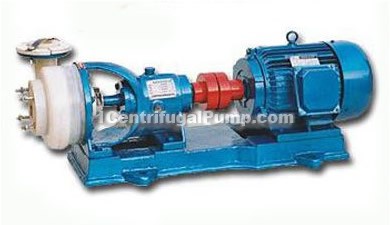

FSB fluoroplastic centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram
FSB fluoroplastic centrifugal pumps
introductions
FSB type fluorine plastic centrifugal pump is elaborate designed according to ISO international standard relevant parameters, combined with nonmetal processing technology, it can long-term convey excluding solid particles any concentration of acid, alkali, hydrogen and other corrosive media under -85 ~ 200 degrees Celsius temperature conditions, with strong corrosion resistance, high mechanical strength, no aging, non-toxic no decomposition, it has wide performance parameters, high efficiency and compact structure, easy maintenance, energy saving etc, advantages, eliminates run, emit, drip, leakage. Main purpose and application scope is chemical, petroleum, pharmaceutical, printing and dyeing, papermaking, foodstuff, smelting industries ideal anticorrosive convey equipment.
performance parameters
| type | inlet (mm) | outlet (mm) | flow Q | head (m) | power(Kw) | rotate speed (r/min) | NPSH (m) | efficiency (%) | ||
| (m3/h) | (L/s) | shaft power | motor power | |||||||
| FSB50-32-125 | 50 | 32 | 12.5 | 3.47 | 20 | 1.33 | 2.2 | 2900 | 3.0 | 51 |
| FSB50-32-160 | 50 | 32 | 12.5 | 3.47 | 32 | 2.37 | 4 | 2900 | 3.0 | 46 |
| FSB50-32-200 | 50 | 32 | 12.5 | 3.47 | 50 | 4.36 | 7.5 | 2900 | 3.0 | 39 |
| FSB65-50-125 | 65 | 50 | 25 | 6.94 | 20 | 2.2 | 3 | 2900 | 3.5 | 62 |
| FSB65-50-160 | 65 | 50 | 25 | 6.94 | 32 | 3.82 | 5.5 | 2900 | 3.5 | 57 |
| FSB65-40-200 | 65 | 40 | 25 | 6.94 | 50 | 6.53 | 11 | 2900 | 3.5 | 52 |
| FSB80-65-125 | 80 | 65 | 50 | 13.88 | 20 | 3.95 | 5.5 | 2900 | 4.0 | 69 |
| FSB80-65-160 | 80 | 65 | 50 | 13.88 | 32 | 6.5 | 11 | 2900 | 4.0 | 67 |
| FSB80-50-200 | 80 | 50 | 50 | 13.88 | 50 | 10.8 | 15 | 2900 | 4.0 | 63 |
| FSB100-80-125 | 100 | 80 | 100 | 27.77 | 20 | 7.1 | 11 | 2900 | 4.5 | 77 |
| FSB100-80-160 | 100 | 80 | 100 | 27.77 | 32 | 11.9 | 15 | 2900 | 4.5 | 73 |
| FSB100-65-200 | 100 | 65 | 100 | 27.77 | 50 | 18.9 | 30 | 2900 | 4.5 | 73 |
