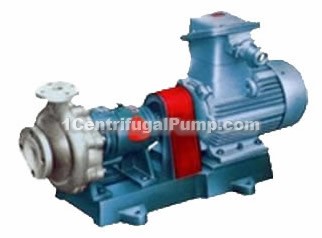

HKG high temperature chemical centrifugal pumps
summary
IHK (G) series Centrifugal Pump (starch pump, high-temperature slurry pump) is single stage signle suction cantilever centrifugal pump series, is our company absorbing foreign advanced technology, on the basis of the IH pump upgrading innovation into standard Centrifugal Pump, design according to the international standard ISO2858 and manufacture according to international standard ISO5199/DIS, is derived product of IH chemical centrifugal pump, spare parts size has achieved standardized efficient product, gaining a good reputation by customers.
features
This pump characteristic is particularly prominent, 6 sets sealing structure, 3 knids bearing cooling method, 2 kinds impeller forms, with strong reliability, good interchangeability. Flow 3.4-460m3/h head: h = 3.6-132m, speed 1450-2900r/min
usages
It is mainly used in oil, chemical industry, synthetic fiber, fertilizer, power plant, metallurgy, food and pharmaceutics, etc.industrial departments to transport clean or containing particles liquid, low or high temperature liquid, neutral or corrosive liquid, the medium average temperature is -45℃～200℃. High-temperature type, slurry type medium temperature -60℃~+360℃ conveying high temperature and normal temperature particles corrosive liquid, also can transport corrosive liquid similar to water. Used in chemical, petroleum, metallurgy, pharmacy, food, wine, power, environmental protection and hostile environment.
performance parameters
| type | inlet← | outlet→ | flow | head | equipped motor | impeller diameter mm | |
| inletXoutletXimpeller (mm)(mm)(mm) | mm | mm | (m3/h) | (m) | r/min | P | |
| HKG50-32-125 | 50 | 32 | 12.5 | 20 | ?2900 | 2.2 | 125 |
| HKG50-32-125 | 50 | 32 | 6.3 | 5 | 1450 | 0.55 | 125 |
| HKG50-32-160 | 50 | 32 | 12.5 | 32 | ?2900 | 3 | 160 |
| HKG50-32-160 | 50 | 32 | 6.3 | 8 | 1450 | 0.55 | 160 |
| HKG50-32-200 | 50 | 32 | 12.5 | 50 | 2900 | 5.5 | 200 |
| HKG50-32-200 | 50 | 32 | 6.3 | 12.5 | 1450 | 0.75 | 200 |
| HKG50-32-250 | 50 | 32 | 12.5 | 80 | 2900 | 11 | 250 |
| HKG50-32-250 | 50 | 32 | 6.3 | 20 | 1450 | 1.5 | 250 |
| HKG65-50-125 | 65 | 50 | 25 | 20 | 2900 | 3 | 125 |
| HKG65-50-125 | 65 | 50 | 12.5 | 5 | 1450 | 0.55 | 125 |
| HKG65-50-160 | 65 | 50 | 25 | 32 | 2900 | 5.5 | 160 |
| HKG65-50-160 | 65 | 50 | 12.5 | 8 | 1450 | 0.75 | 160 |
| HKG65-40-200 | 65 | 40 | 25 | 50 | 2900 | 11 | 200 |
| HKG65-40-200 | 65 | 40 | 12.5 | 12.5 | 1450 | 1.1 | 200 |
| HKG65-40-250 | 65 | 40 | 25 | 80 | 2900 | 15 | 250 |
| HKG65-40-250 | 65 | 40 | 12.5 | 20 | 1450 | 2.2 | 250 |
| HKG65-40-315 | 65 | 40 | 25 | 125 | 2900 | 30 | 315 |
| HKG65-40-315 | 65 | 40 | 12.5 | 32 | 1450 | 4 | 315 |
| HKG80-65-125 | 80 | 65 | 50 | 20 | 2900 | 5.5 | 125 |
| HKG80-65-125 | 80 | 65 | 25 | 5 | 1450 | 0.75 | 125 |
| HKG80-65-160 | 80 | 65 | 50 | 32 | 2900 | 7.5 | 160 |
| HKG80-65-160 | 80 | 65 | 25 | 8 | 1450 | 1.1 | 160 |
| HKG80-50-200 | 80 | 50 | 50 | 50 | 2900 | 15 | 200 |
| HKG80-50-200 | 80 | 50 | 25 | 12.5 | 1450 | 2.2 | 200 |
| HKG80-50-250 | 80 | 50 | 50 | 80 | 2900 | 30 | 250 |
| HKG80-50-250 | 80 | 50 | 25 | 20 | 1450 | 4 | 250 |
| HKG80-50-315 | 80 | 50 | 50 | 125 | 2900 | 45 | 315 |
| HKG80-50-315 | 80 | 50 | 25 | 32 | 1450 | 5.5 | 315 |
| HKG100-80-125 | 100 | 80 | 100 | 20 | 2900 | 11 | 125 |
| HKG100-80-125 | 100 | 80 | 50 | 5 | 1450 | 1.5 | 125 |
| HKG100-80-160 | 100 | 80 | 100 | 32 | 2900 | 15 | 160 |
| HKG100-80-160 | 100 | 80 | 50 | 8 | 1450 | 2.2 | 160 |
| HKG100-65-200 | 100 | 65 | 100 | 50 | 2900 | 30 | 200 |
| HKG100-65-200 | 100 | 65 | 50 | 12.5 | 1450 | 4 | 200 |
| HKG100-65-250 | 100 | 65 | 100 | 80 | 2900 | 45 | 250 |
| HKG100-65-250 | 100 | 65 | 50 | 20 | 1450 | 5.5 | 250 |
| HKG100-65-315 | 100 | 65 | 100 | 125 | 2900 | 75 | 315 |
| HKG100-65-315 | 100 | 65 | 50 | 32 | 1450 | 11 | 315 |
| HKG125-100-200 | 125 | 100 | 200 | 50 | 2900 | 45 | 200 |
| HKG125-100-200 | 125 | 100 | 100 | 12.5 | 1450 | 7.5 | 200 |
| HKG125-100-250 | 125 | 100 | 200 | 80 | 2900 | 75 | 250 |
| HKG125-100-250 | 125 | 100 | 100 | 20 | 1450 | 11 | 250 |
| HKG125-100-315 | 125 | 100 | 200 | 125 | 2900 | 110 | 315 |
| HKG125-100-315 | 125 | 100 | 100 | 32 | 1450 | 18.5 | 315 |
| HKG125-100-400 | 125 | 100 | 100 | 50 | 1450 | 30 | 400 |
| HKG150-125-250 | 150 | 125 | 200 | 20 | 1450 | 18.5 | 250 |
| HKG150-125-315 | 150 | 125 | 200 | 32 | 1450 | 30 | 315 |
| HKG150-125-400 | 150 | 125 | 200 | 50 | 1450 | 55 | 400 |
| HKG200-150-250 | 200 | 150 | 400 | 20 | 1450 | 37 | 250 |
| HKG200-150-315 | 200 | 150 | 400 | 32 | 1450 | 55 | 315 |
| HKG200-150-400 | 200 | 150 | 400 | 50 | 1450 | 90 | 400 |
| HKG250-200-315 | 250 | 200 | 550 | 32 | 1450 | 75 | 315 |
| HKG250-200-450 | 250 | 200 | 600 | 60 | 1450 | 160 | 450 |
