IHF series fluoroplastic lining centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram

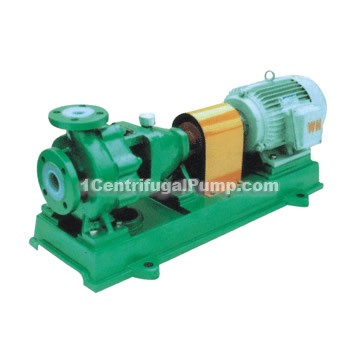

IHF series fluoroplastic lining centrifugal pumps
product summary
IHF type pump is single stage single suction type fluoroplastic alloy chemical centrifugal pump, designed and manufactured according to GB combined with nonmetallic pump process. This pump is corrosion resistant, wear-resisting, high temperature resistant, no aging, high mechanical strength, non-toxic decomposition, wide applicable temperature, etc. Pump body adopts metal shell internal lining F46, impeller and pump cover adopt metal embedded parts outsourcing fluorine plastic overall sintering pressure molding, shaft seal uses external mounted bellows mechanical seal.
product features
IHF type fluorine plastic centrifugal pump characteristics are the pump structure is reasonable and advanced, corrosion resistance is strong, sealing performance is stable, working is reliable, low noise, and long service life. Transmission medium temperature is -85℃~200℃, flow is1.75-200m3/h, head: 4.5-87m rotate speed: 1450-2900r/min
product application
This pump is widely used in chemical, pharmaceutical, oil, metallurgical, power, electroplating, pickling, pesticide, papermaking and other industry liquid transportation, wastewater treatment and add acid process. Conveying any concentration sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, aqua regia, strong alkali, strong oxidizer, organic solvent and other strong corrosive medium application, is one of the most advanced anti-corrosion equipments.
performance parameters
| type | rotate speed n=2900 r/min | rotate speed n=1450 r/min | ||||||||
| flow ( m3/h) | head m | motor power Kw | NPSH (m) | efficiency (%) | flow m3/h | head m | motor power Kw | NPSH (m) | efficiency (%) | |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3.0 | 51 | 6.3 | 5 | 0.55 | 3.0 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3.0 | 46 | 6.3 | 8 | 0.55 | 3.0 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3.0 | 39 | 6.3 | 12.5 | 1.1 | 3.0 | 33 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4.0 | 69 | 25 | 5 | 1.1 | 4.0 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4.0 | 67 | 25 | 8 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4.0 | 63 | 25 | 12.5 | 2.2 | 4.0 | 57 |
| IHF80-50-250 | 50 | 80 | 30 | 4.0 | 66 | 25 | 20 | 5.5 | 4.0 | 51 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| IHF125-80-160 | 160 | 32 | 30 | 5.0 | 70 | 80 | 8 | 5.5 | 5.0 | 74 |
| IHF125-100-200 | 200 | 50 | 55 | 5.0 | 65 | 100 | 12.5 | 11 | 5.0 | 71 |
