IHF sulfuric acid pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram

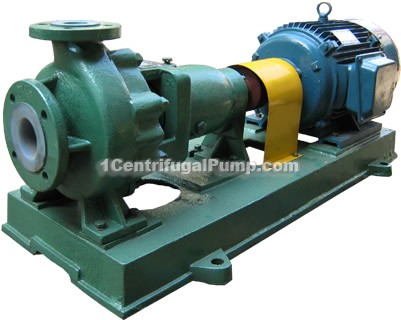

IHF sulfuric acid pumps
introductions
IHF type pump is single stage single suction fluoroplastic alloy chemical centrifugal pump (hereinafter referred to as sulfuric acid pump) is according to GB design and combined with non-metal pump processing technics produced. This pump has corrosion resistant, wear-resisting, high temperature resistant, no aging, high mechanical strength, non-toxic decomposition, wide use temperature, etc advantages. Pump body adopts metal shell lining F46, the impeller and pump cover adopt metal embedded parts outsourcing fluorine plastic overall sintering pressure molding, shaft seal uses externally mounted bellows mechanical seal.
features
Its characteristic is reasonable and advanced structure, strong corrosion resistance, rigor and reliable sealing performance, stable operation. Low noise and long service life. Transmission medium temperature is -85 ° ~ 200 ° c, flow：1.75-200m3/h, head: 4.5-87m rotate speed: 2900r/min
usages
This pump is widely used in chemical, pharmaceutical, oil, metallurgical, power, electroplating, pickling, pesticide, papermaking and other industry liquid transportation, wastewater treatment, acid and process, etc. Conveying any concentration sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, aqua regia, alkali, strong oxidizer, organic solvent and other strong corrosive medium, is the most advanced anti-corrosion equipment.
performance parameters
| type | rotate speed n=2900 r/min | rotate speed n=1450 r/min | ||||||||
| flow ( m3/h) | head m | motor power Kw | NPSH(m) | efficiency (%) | flow m3/h | head m | motor power Kw | NPSH (m) | efficiency (%) | |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3.0 | 51 | 6.3 | 5 | 0.55 | 3.0 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3.0 | 46 | 6.3 | 8 | 0.55 | 3.0 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3.0 | 39 | 6.3 | 12.5 | 1.1 | 3.0 | 33 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4.0 | 69 | 25 | 5 | 1.1 | 4.0 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4.0 | 67 | 25 | 8 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4.0 | 63 | 25 | 12.5 | 2.2 | 4.0 | 57 |
| IHF80-50-250 | 50 | 80 | 30 | 4.0 | 66 | 25 | 20 | 5.5 | 4.0 | 51 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| IHF125-80-160 | 160 | 32 | 30 | 5.0 | 70 | 80 | 8 | 5.5 | 5.0 | 74 |
| IHF125-100-200 | 200 | 50 | 55 | 5.0 | 65 | 100 | 12.5 | 11 | 5.0 | 71 |
