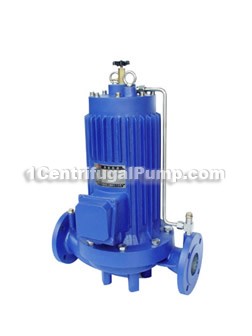

PBG type shielding pipeline pumps
introductions
PBG type shielding pipeline pump is our company introduced from Japanese advanced technology, and absorb international shielding pump professional design and manufacture advanced technology, through our technician innovation, promote the new shielding pump. Improving core technology, and flow state, improve efficiency more than 10%, based on the oringinal functions, the comprehensive performance index has been improved, product is more ideal. SPG pump is a water pump of motor and pump body integrated structure, only has the static sealing pump (not rotating shaft seal), so it can completely without leakage. Because of its low noise, together with low failure, high reliability, and the best maintenance performance advantages win customers greet. It also increases the market demand of high quality pump. Product is widely used in petroleum, chemical industry, medicine, textile, nuclear and military and urban water supply and drainage and fire fighting pressurization, high-rise buildings, landscape pressurized water irrigation, hvac refrigeration, cold and hot water circulation pressurization etc. Especially for high requirements of vibration and noise occasions, such as the key project, pump, central air conditioning, etc. it can also be used to transport the liquids that pressure and temperature will not produce crystal and solidification, especially for harmful to human health and the environment and unsafe liquid and precious liquids, such as the strong corrosive, toxic, volatile, radioactive, etc.
performance parameters
| type | flow Q | head H (m) | efficiency η (%) | rotate speedn (r/min) | motor power (kw) | NPSH (m) | weight (kg) | |
| (m3/h) | (L/s) | |||||||
| PBG40-100 | 6.3 | 1.75 | 12.5 | 54 | 1450 | 0.55 | 3.5 | 32 |
| PBG40-100A | 5.6 | 1.56 | 10 | 52 | 1450 | 0.37 | 3.5 | 32 |
| PBG40-125 | 6.3 | 1.75 | 20 | 46 | 1450 | 1.1 | 3.5 | 34 |
| PBG40-125A | 5.6 | 1.56 | 16 | 45 | 2900 | 0.75 | 3.5 | 33 |
| PBG40-160 | 6.3 | 1.75 | 32 | 40 | 2900 | 2.2 | 3.5 | 47 |
| PBG40-160A | 5.9 | 1.64 | 28 | 39 | 2900 | 1.5 | 3.5 | 43 |
| PBG40-160B | 5.5 | 1.53 | 24 | 38 | 2900 | 1.1 | 3.5 | 38 |
| PBG40-200 | 6.3 | 1.75 | 50 | 33 | 2900 | 4.0 | 3.5 | 74 |
| PBG40-200A | 5.9 | 1.64 | 44 | 31 | 2900 | 3.0 | 3.5 | 62 |
| PBG40-200B | 5.3 | 1.47 | 36 | 29 | 2900 | 2.2 | 3.5 | 52 |
| PBG40-250 | 6.3 | 1.75 | 80 | 28 | 2900 | 7.5 | 3.5 | 105 |
| PBG40-250A | 5.9 | 1.64 | 70 | 28 | 2900 | 5.5 | 3.5 | 98 |
| PBG40-250B | 5.5 | 1.53 | 60 | 27 | 2900 | 4.0 | 3.5 | 77 |
| PBG40-100(I) | 12.5 | 3.47 | 12.5 | 62 | 1450 | 1.1 | 3.5 | 34 |
| PBG40-100(I)A | 11 | 3.05 | 10 | 60 | 1450 | 0.75 | 3.5 | 31 |
| PBG40-125(I) | 12.5 | 3.47 | 20 | 58 | 1450 | 1.5 | 3.5 | 38 |
| PBG40-125(I)A | 11 | 3.05 | 16 | 57 | 1450 | 1.1 | 3.5 | 33 |
| PBG40-160(I) | 12.5 | 3.47 | 32 | 52 | 2900 | 3.0 | 3.5 | 56 |
| PBG40-160(I)A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 3.5 | 47 |
| PBG40-160(I)B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 3.5 | 43 |
| PBG40-200(I) | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 3.5 | 85 |
| PBG40-200(I)A | 11.7 | 3.25 | 44 | 45 | 2900 | 4.0 | 3.5 | 75 |
| PBG40-200(I)B | 10.6 | 2.94 | 36 | 44 | 2900 | 3.0 | 3.5 | 63 |
| PBG40-250(I) | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 3.5 | 145 |
| PBG40-250(I)A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 3.5 | 95 |
| PBG40-250(I)B | 10.8 | 3.0 | 60 | 37 | 2900 | 7.5 | 3.5 | 94 |
| PBG40-250(I)C | 10.0 | 2.78 | 52 | 36 | 2900 | 5.5 | 3.5 | 88 |
| PBG50-100 | 12.5 | 3.47 | 12.5 | 62 | 1450 | 1.1 | 3.5 | 36 |
| PBG50-100A | 11 | 3.05 | 10 | 60 | 1450 | 0.75 | 3.5 | 35 |
| PBG50-125 | 12.5 | 3.47 | 20 | 58 | 1450 | 1.5 | 3.5 | 43 |
| PBG50-125A | 11 | 3.05 | 16 | 57 | 1450 | 1.1 | 3.5 | 38 |
| PBG50-160 | 12.5 | 3.47 | 32 | 52 | 2900 | 3.0 | 3.5 | 59 |
| PBG50-160A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 3.5 | 51 |
| PBG50-160B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 3.5 | 47 |
| PBG50-200 | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 3.5 | 101 |
| PBG50-200A | 11.7 | 3.25 | 44 | 45 | 2900 | 4.0 | 3.5 | 80 |
| PBG50-200B | 10.6 | 2.94 | 36 | 44 | 2900 | 3.0 | 3.5 | 68 |
| PBG50-250 | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 3.5 | 160 |
| PBG50-250A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 3.5 | 115 |
| PBG50-250B | 10.8 | 3.0 | 60 | 37 | 2900 | 7.5 | 3.5 | 114 |
| PBG50-250C | 10.0 | 2.78 | 52 | 36 | 2900 | 5.5 | 3.5 | 108 |
| PBG50-100(I) | 25 | 6.94 | 12.5 | 69 | 1450 | 1.5 | 3.8 | 41 |
| PBG50-100(I)A | 22.3 | 6.19 | 10 | 67 | 1450 | 1.1 | 3.8 | 36 |
| PBG50-125(I) | 25 | 6.94 | 20 | 68 | 1450 | 3.0 | 3.8 | 56 |
| PBG50-125(I)A | 22.3 | 6.49 | 16 | 66 | 1450 | 2.2 | 3.8 | 48 |
| PBG50-160(I) | 25 | 6.94 | 32 | 63 | 1450 | 4.0 | 3.8 | 72 |
| PBG50-160(I)A | 23.4 | 6.5 | 28 | 62 | 1450 | 4.0 | 3.8 | 71 |
| PBG50-160(I)B | 21.6 | 6.0 | 24 | 58 | 1450 | 3.0 | 3.8 | 59 |
| PBG50-200(I) | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 3.8 | 108 |
| PBG50-200(I)A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 3.8 | 107 |
| PBG50-200(I)B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 3.8 | 100 |
| PBG50-250(I) | 25 | 6.94 | 80 | 50 | 2900 | 15.0 | 3.8 | 175 |
| PBG50-250(I)A | 23.4 | 6.5 | 70 | 50 | 2900 | 11.0 | 3.8 | 165 |
| PBG50-250(I)B | 21.6 | 6.0 | 60 | 48 | 2900 | 11.0 | 3.8 | 165 |
| PBG50-315(I) | 25 | 6.94 | 125 | 40 | 2900 | 30.0 | 3.8 | 310 |
| PBG50-315(I)A | 23.7 | 6.58 | 113 | 40 | 2900 | 22.0 | 3.8 | 245 |
| PBG50-315(I)B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 3.8 | 215 |
| PBG50-315(I)C | 20.6 | 5.72 | 85 | 38 | 2900 | 15.0 | 3.8 | 195 |
| PBG65-100 | 25 | 6.94 | 12.5 | 69 | 1450 | 1.2 | 3.8 | 46 |
| PBG65-100A | 22.3 | 6.19 | 10 | 67 | 1450 | 1.1 | 3.8 | 41 |
| PBG65-125 | 25 | 6.94 | 20 | 68 | 1450 | 3.0 | 3.8 | 58 |
| PBG65-125A | 22.3 | 6.19 | 16 | 66 | 1450 | 2.2 | 3.8 | 49 |
| PBG65-160 | 25 | 6.94 | 32 | 63 | 1450 | 4.0 | 3.8 | 75 |
| PBG65-160A | 23.4 | 6.5 | 28 | 62 | 1450 | 4.0 | 3.8 | 75 |
| PBG65-160B | 21.6 | 6.0 | 24 | 58 | 1450 | 3.0 | 3.8 | 63 |
| PBG65-200 | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 3.8 | 107 |
| PBG65-200A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 3.8 | 107 |
| PBG65-200B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 3.8 | 100 |
| PBG65-250 | 25 | 6.94 | 80 | 50 | 2900 | 15.0 | 3.8 | 180 |
| PBG65-250A | 23.4 | 6.5 | 70 | 50 | 2900 | 11.0 | 3.8 | 170 |
| PBG65-250B | 21.6 | 6.0 | 60 | 49 | 2900 | 11.0 | 3.8 | 170 |
| PBG65-315 | 25 | 6.94 | 125 | 40 | 2900 | 30. | 3.8 | 320 |
| PBG65-315A | 23.7 | 6.58 | 113 | 40 | 2900 | 22.0 | 3.8 | 255 |
| PBG65-315B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 3.8 | 225 |
| PBG65-315C | 20.6 | 5.72 | 85 | 38 | 2900 | 15.5 | 3.8 | 205 |
| PBG65-100(I) | 50 | 13.9 | 12.5 | 73 | 1450 | 3.0 | 4.2 | 63 |
| PBG65-100(I)A | 44.7 | 12.5 | 10 | 72 | 1450 | 2.2 | 4.2 | 53 |
| PBG65-125(I) | 50 | 13.9 | 20 | 72.5 | 1450 | 5.5 | 4.2 | 99 |
| PBG65-125(I)A | 45 | 12.5 | 16 | 71 | 1450 | 4.0 | 4.2 | 78 |
| PBG65-160(I) | 50 | 13.9 | 32 | 71 | 1450 | 7.5 | 4.2 | 103 |
| PBG65-160(I)A | 46.7 | 13.0 | 28 | 70 | 1450 | 7.5 | 4.2 | 103 |
| PBG65-160(I)B | 43.3 | 12.0 | 24 | 69 | 1450 | 5.5 | 4.2 | 97 |
| PBG65-200(I) | 50 | 13.9 | 50 | 67 | 2900 | 15.0 | 4.2 | 176 |
| PBG65-200(I)A | 47 | 13.1 | 44 | 66 | 2900 | 11.0 | 4.2 | 166 |
| PBG65-200(I)B | 43.5 | 12.1 | 38 | 65 | 2900 | 7.5 | 4.2 | 114 |
| PBG65-250(I) | 50 | 13.9 | 80 | 59 | 2900 | 22.0 | 4.2 | 235 |
| PBG65-250(I)A | 46.7 | 13.0 | 70 | 59 | 2900 | 18.5 | 4.2 | 205 |
| PBG65-250(I)B | 43.3 | 12.0 | 60 | 58 | 2900 | 15.0 | 4.2 | 180 |
| PBG65-315(I) | 50 | 13.9 | 125 | 54 | 2900 | 34.0 | 4.2 | 350 |
| PBG65-315(I)A | 46.5 | 12.9 | 110 | 54 | 2900 | 30.0 | 4.2 | 355 |
| PBG65-315(I)B | 44.5 | 12.4 | 100 | 53 | 2900 | 30.0 | 4.2 | 335 |
| PBG65-315(I)C | 41 | 11.4 | 85 | 51 | 2900 | 22.0 | 4.2 | 270 |
| PBG80-100 | 50 | 13.9 | 12.5 | 73 | 1450 | 3.0 | 4.2 | 63 |
| PBG80-100A | 44.7 | 12.4 | 10 | 72 | 1450 | 2.2 | 4.2 | 54 |
