S-type horizontal FRP centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

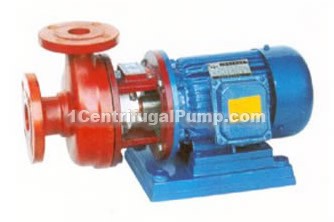

diagram
S-type horizontal FRP centrifugal pumps
main features
S horizontal FRP pipe centrifugal pump contact liquid flow components adopt polyvinyl-butyral (PVB), phenolic glass fiber materials through high-temperature moulding, with good corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc. S horizontal FRP pipe centrifugal pump shaft seal uses ordinary type and anti-particle mechanical sealing two kinds (submerged pump without mechanical seal) reasonable structure, less power consumption. Shanghai Yihuan produced S horizontal S FRP pipe centrifugal pump is new-style material anti-corrosion pump, have been widely used as conveying corrosive medium in many chemical enterprise.
technical parameter scope
diameter: 25～100mm
outlet diameter:25~100mm
flow:3.2m3/h~100m3/h
stage:
head:12.5m~100m
suction:
shaft power:
roate speed:2900r/min
efficiency: 41%~73%
bearing diameter:
NPSH:3NPSHrm~5NPSHrm
motor power:0.55/0.75kw~22/30kw
applicable medium: potable water, sea water, corrosive medium, oil and gas, gas transportation
Applicable industries: urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverages, environmental protection
voltage:380v
Material: FRP, stainless steel
submerged depth:
equipped power:0.75kw~55kw
applicable industry
Chemical, pharmaceutical, oil, electroplating, food, film photography, scientific research institut
structure

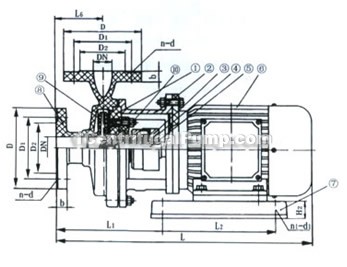

S-type horizontal FRP centrifugal pump constructral diagram(pic1)
S-type horizontal FRP centrifugal pump constructral diagram(pic2)
performance parameters
| type | flow Qm3/h | head H m | rotate n r/min | efficiency n % | NPSHrm | motor power NKW |
| S25×25-12.5 | 3.2 | 12.5 | 2900 | 41 | 3 | 0.55/0.75 |
| S40×32-20 | 6.3 | 20 | 2900 | 50 | 3 | 1.1/1.5 |
| S40×32-32 | 6.3 | 32 | 2900 | 45 | 3 | 2.2/3 |
| S50×40-20 | 12.5 | 20 | 2900 | 53 | 3 | 2.2/3 |
| S50×32-32 | 12.5 | 32 | 2900 | 51 | 3 | 4.0/5.5 |
| S65×50-20 | 25 | 20 | 2900 | 64 | 3 | 3.0/4 |
| S65×50-25 | 25 | 25 | 2900 | 61 | 3 | 3.0/4 |
| S65×50-32 | 25 | 32 | 2900 | 60 | 3 | 5.5/7.5 |
| S80×65-32 | 50 | 32 | 2900 | 69 | 4 | 7.5/11 |
| S100×80-50 | 100 | 100 | 2900 | 73 | 5 | 22/30 |
