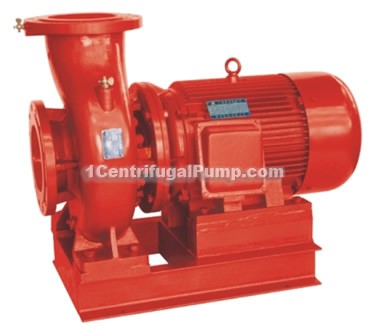

XBD-W type horizontal fire pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
diagram
XBD-W type horizontal fire pumps
introductions
XBD-W type fire pump is horizontal and signle stage multi-stage, sectional structure, is the latest develop and produced energy-saving series products. Its performance parameters and technical index comply with the relevant standards, with high efficiency, low noise, good cavitation performance, reasonable structure, and long service life etc. XBD-W type fire pump series consists of 5 varieties 40 specifications, the performance range rated flow is 5 ~ 40L/s, pressure range is 0.18 ~ 2.0MPa, supporting power range is 2.2--180kW, diameter scope is φ 50 ~ φ 150mm. XBD-W type fire pump is mainly used in conveying water without solid particles or chemical and physical properties similar to water liquids. It is mainly used in fire system pipes pressurized water. It is also used for industrial and urban water supply and drainage, high-rise constructions pressurized water supply, distant distance water supply, heating boiler, bathroom, cold and hot water circulation pressurization air conditioning and refrigeration system water supply and equipment matings, etc.
main usages
XBD-W type series fire pumps are applicable for fire pipe pressurized water supply. For conveying water or chemical and physical properties similar to water other liquids. Medium temperature does not exceed 80℃, suitable for industrial and urban water supply and drainage, high-rise building pressurization and water supply, garden spray irrigation, distant distance water supply, heating, bathroom, cold and hot water circulation pressurization and the equipment matings, etc
performance parameters
| type | flow Q (L/s) | pressure P (MPa) | rotate speed n (r/min) | efficiency η (%) | power N (Kw) | (NPSH)r (m) |
| XBD1.8/5-50W | 5 | 0.18 | 1450 | 65 | 2.2 | 3.2 |
| XBD2.7/5-50W | 5 | 0.27 | 1450 | 65 | 3 | 3.2 |
| XBD3.6/5-50W | 5 | 0.36 | 1450 | 65 | 4 | 3.2 |
| XBD4.5/5-50W | 5 | 0.45 | 1450 | 65 | 5.5 | 3.2 |
| XBD5.4/5-50W | 5 | 0.54 | 1450 | 65 | 5.5 | 3.2 |
| XBD6.3/5-50W | 5 | 0.63 | 1450 | 65 | 7.5 | 3.2 |
| XBD7.2/5-50W | 5 | 0.72 | 1450 | 65 | 7.5 | 3.2 |
| XBD8.1/5-50W | 5 | 0.81 | 1450 | 65 | 7.5 | 3.2 |
| XBD2.3/10-75W | 10 | 023 | 1450 | 68 | 5.5 | 3.0 |
| XBD3.4/10-75W | 10 | 0.34 | 1450 | 68 | 7.5 | 3.0 |
| XBD4.6/10-75W | 10 | 0.46 | 1450 | 68 | 11 | 3.0 |
| XBD5.5/10-75W | 10 | 0.55 | 1450 | 68 | 11 | 3.0 |
| XBD6.9/10-75W | 10 | 0.69 | 1450 | 68 | 15 | 3.0 |
| XBD8.0/10-75W | 10 | 0.80 | 1450 | 68 | 15 | 3.0 |
| XBD9.2/10-75W | 10 | 0.92 | 1450 | 68 | 18.5 | 3.0 |
| XBD10.3/10-75W | 10 | 1.03 | 1450 | 68 | 18.5 | 3.0 |
| XBD2.9/20-100W | 20 | 0.29 | 1450 | 72 | 11 | 3.5 |
| XBD4.3/20-100W | 20 | 0.43 | 1450 | 72 | 15 | 3.5 |
| XBD5.8/20-100W | 20 | 0.58 | 1450 | 72 | 22 | 3.5 |
| XBD7.2/20-100W | 20 | 0.72 | 1450 | 72 | 30 | 3.5 |
| XBD8.6/20-100W | 20 | 0.86 | 1450 | 72 | 30 | 3.5 |
| XBD10.1/20-100W | 20 | 1.01 | 1450 | 72 | 37 | 3.5 |
| XBD11.5/2W0-100W | 20 | 1.15 | 1450 | 72 | 45 | 3.5 |
| XBD13.0/20-100W | 20 | 1.30 | 1450 | 72 | 45 | 3.5 |
| XBD4.2/25-125W | 25 | 0.42 | 1450 | 73 | 22 | 3.5 |
| XBD6.3/25-125W | 25 | 0.63 | 1450 | 73 | 30 | 3.5 |
| XBD8.4/25-125W | 25 | 0.84 | 1450 | 73 | 45 | 3.5 |
| XBD10.5/25-125W | 25 | 1.05 | 1450 | 73 | 55 | 3.5 |
| XBD12.6/25-125W | 25 | 1.26 | 1450 | 73 | 75 | 3.5 |
| XBD14.7/25-125W | 25 | 1.47 | 1450 | 73 | 75 | 3.5 |
| XBD16.8/25-125W | 25 | 1.68 | 1450 | 73 | 90 | 3.5 |
| XBD18.9/25-125W | 25 | 1.89 | 1450 | 73 | 90 | 3.5 |
| XBD5.8/45-150W | 25 | 0.58 | 1450 | 73 | 45 | 3.0 |
| XBD8.7/45-150W | 25 | 0.87 | 1450 | 73 | 75 | 3.0 |
| XBD11.6/45-150W | 25 | 1.16 | 1450 | 73 | 90 | 3.0 |
| XBD14.5/45-150W | 25 | 1.45 | 1450 | 73 | 110 | 3.0 |
| XBD17.4/45-150W | 25 | 1.74 | 1450 | 73 | 135 | 3.0 |
| XBD20.3/45/150W | 25 | 2.03 | 1450 | 73 | 155 | 3.0 |
| XBD23.2/45-150W | 25 | 2.32 | 1450 | 73 | 180 | 3.0 |
| XBD26.1/45-150W | 25 | 2.61 | 1450 | 73 | 180 | 3.0 |
